Mold design

Being a leader in the plastic injection mould industry. We believe that a quality part comes from a quality mold and a good part design, and a good mould design is the key to get a high performance mould. Quality must begin with mould design capability and consider it to be the key to successful mould making. At HM Mold we have invested in both professional people and technology to ensure that our designs meet your highest expectations.

HM Mold is able to design mould according to customer’s product designs, 2D/3D models or drawings with specification. Our design capability include:

■    DFM

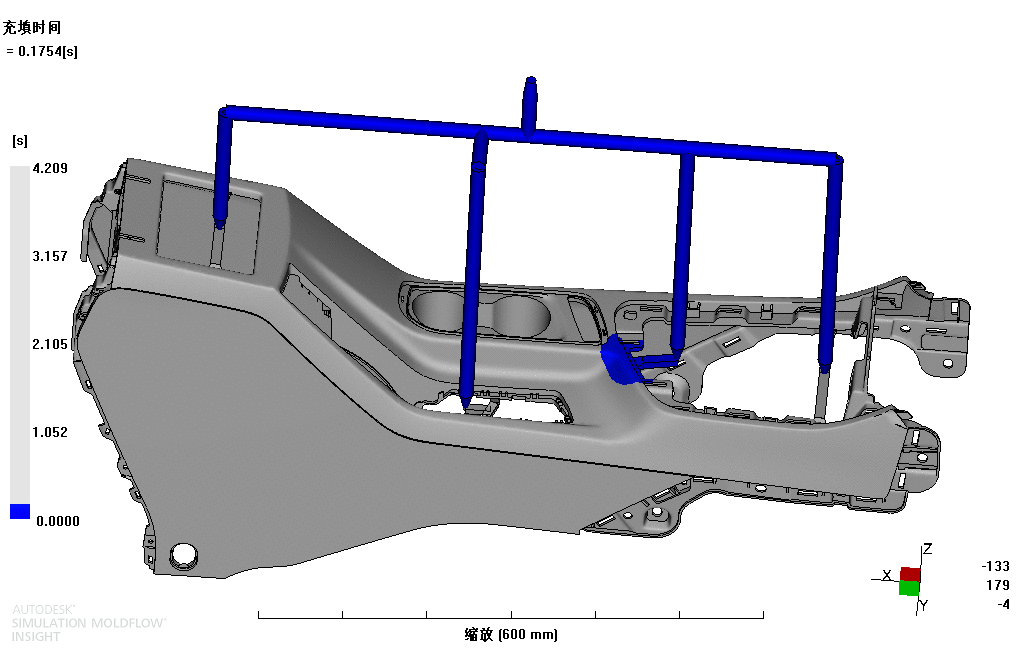

■    Mould flow analysis
■    Product optimization
■    Full 2D & 3D mould design
■    Reverse engineering
■    Collaborative design with customer's idea

Our mould design is not just simply follow the customer' opinion, but also based on the complexity of the mould. With over 13 years experience combined in plastics manufacturing, we are able to reveal potential quality problems or risks at the early stage, and in conjunction with the customer optimize the design to eliminate them before mould production starts.

The professional software used at HM:   ■  Mould design software:  AutoCAD, UG
                                                                 ■  Programming software: Powermill

Data exchange: UG, PRO/E, SOLIDWORKS, CAITA,  CAD, STP, X_T, IGS, PRT, DWG, DXF, PDF, etc.
